Ebike Extension Cable Julet Male/Female 2pin/3pin/4pin/5pin/6Pin DIY Waterproof Plug Cable for Electric Bicycle Display Throttle PAS Light Ebike Parts Extend Cable


Buy Now

Price: $7.89
(as of Dec 14,2022 05:31:11 UTC – Details)


  1. Product model: JL-F-Z209AT.Z309AT.Z409AT.Z509AT.Z609AT
  2. Temperature range: -40 ° C ~ +85 ° C
  3. Rated voltage: 200V AC
  4. Rated current: 3A (determined by cable according to specific conditions)
  5. Contact resistance: ≤10mΩ
  6. Insulation resistance: ≥10MΩ under normal conditions and humid conditions
  7. Withstand voltage: AC 200V 50Hz 1 minute without breakdown or flashing
  8. Contact: Copper alloy tin/gold plating
  9. Protection level: IP66
  10. Mechanical life: 200 times
  11. Maximum outer diameter: 9mm

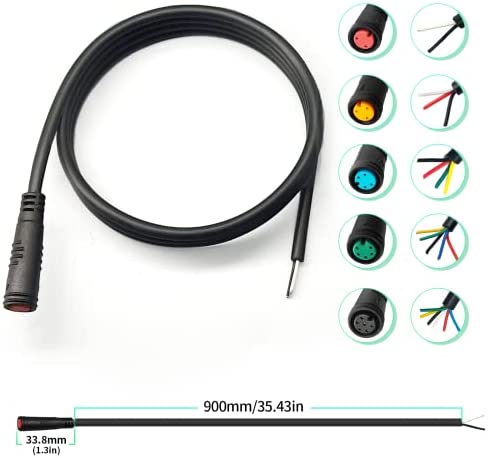

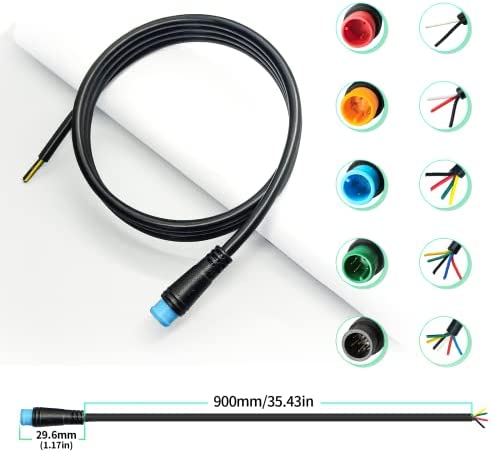

  12. Overall length: 900mm
  13. Use wire specification: 0.05mm-0.2mm 2
  14. Applications: Power supply and signal transmission for electrical and electronic equipment(Light/Throttle/Ebrake/Display/PAS)

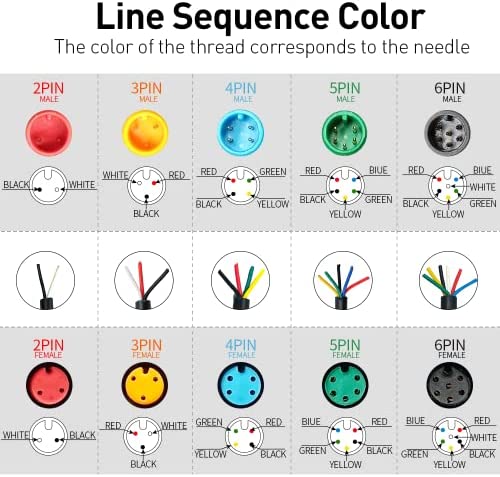

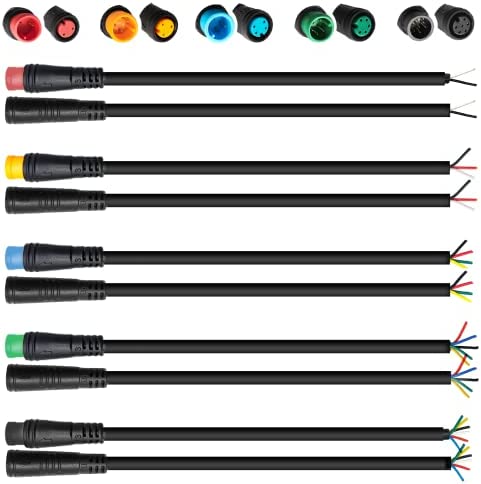

There are 2Pin/3Pin/4Pin/5Pin/6Pin male and female Connectors with Multiple Specifications to Make Your Modification Easier
The 900mm Cable Length is Enough for Electric Bicycle Modification,it can be cut to the appropriate length according to your needs
If you need to make a quick release cable, you can buy two corresponding cables, such as buying a 3 Pin Male and a 3 Pin Female, so that you can connect and disconnect as needed
The waterproof rating of the connector is IP66, so don’t worry about using it in rainy days.It is a very suitable accessory for electric bicycles and electric scooters
Julet waterproof connector is s a very suitable cable for DIY, consistent quality and stable signal.
